Selecting media for optimum vibe bowl gear finishing



Choosing the best media depends on structure and shape of the tooth flank, and whether media components should be abrasive, non-abrasive, or a blend.

The second in our multi-part series on vibratory processing of gears is focused on the selection of media that will be used to improve gear surface quality.


When gear finishing callouts require a final tooth flank Ra that is lower than the as-shaved, as-lapped, or as-ground surface, a typical response is to use vibratory abrasive ceramic media for generic tooth finishing to an Ra = 8–20 μinches, or high-density, non-abrasive media for an isotropic superfinish of Ra ≤ 4 μinches.

Size, shape, and composition of media used depend on the morphological form of the gear teeth and the final Ra value required. Abrasive ceramic media typically contains aluminum oxide abrasive grit and mechanically abrades the surface to improve the Ra value. In isotropic superfinishing, a chemical accelerator is employed to create a soft conversion coating that is wiped from the tooth flank surface with the high-density non-abrasive media.

Vibratory processing is optimized when the shape of the media closely matches the shape of the tooth flank. The most efficient con- tact pattern is plane-to-plane. When the flat face of the tooth flank is matched with a media having a flat-face(s), then the maximum surface area possible is contacted per unit of processing time. Plane- shaped media examples are straight and angle cut triangles, tetra- pyramids, and the base of a cone.

Circular-shaped media, such as cylinders, offer a less efficient tangent-line contact pattern. Such contact isn’t planar, but linear. Much less surface area is contacted per unit of processing time and the cycle is usually extended. Media offering linear contact patters are cylinders, or the side of a cone.

Aluminum Oxide Grit

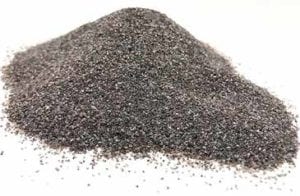

Aluminum oxide grit used in abrasive ceramic media.

Finally, spherical media offers the least efficient contact pattern possible, contacting a tooth flank only at a single point. Spherical media should be considered a media of last resort if no other shape can be employed. Spherical media typically results in a longer processing time than the other two contact patterns.


The two main components in the make-up of an abrasive ceramic media are aluminum oxide grit and clay. Blended together with several other ingredients, the media is extruded through a die, cut to length, then kiln-fired. The kiln firing operation converts the clay to ceramic. Assorted clay types that may be used are river, bentonite, kaolin, porcelain and china clay. After firing we can consider the resultant ceramic as the binder that holds the media together.

When considering media composition, we are trying to deter- mine which media to use based on the ratio of the abrasive grit to the ratio of the clay. As the percentage of abrasive increases in the composition, the proportion of ceramic must consequentially decrease. Since the ceramic is the binder that holds the media together, a media with less binder present has a higher attrition rate. Attrition is the rate at which media decreases in volume as a function of processing time. A high abrasive media with a high attrition rate decomposes rapidly, contributing more loose abrasive into the vibratory mass. This increases abrasive action, decreases processing time, and produces a matte final finish. An attrition rate of 2 percent per hour is typical.

Media of different compositions attrit at different rates. High abrasive content media will finish parts rapidly, generating a final Ra value 15-18 μinches. Lower abrasive content media will finish at a slower speed, producing an Ra value in the 9-12 μinch range. The higher the media’s attrition rate, the greater the volume of sludge it will produce per unit time.

Isotropic  superfinishing  employs  high-density,  non-abrasive media to wipe, not abrade, surface asperities when used with a chemistry that forms a soft conversion coating. A non-abrasive media leaves a mirror-reflective surface on steel surfaces hardened to Rc ≥ 40. The attrition of this media is nearly nil, typically 0.008 percent per hour. Final Ra values are ≤ 4 μinches are usually achieved, and a final step burnishing step removes the conversion coating to leave a clean final finish.


Low DP tooth patterns are easier to refine as the media can more uniformly contact the tooth flank, addendum to dedendum. Tighter pitch pattern gears may be better finished using a media blend.

Tooth addendums project into the media mass and are more easily recessed than dedendums. Therefore, metal removal rates vary from addendum to dedendum. To equilibrate metal removal from top land to root, consider blending two or more media types. Smallish, high- density media with a density of 125 lbs/ft3 falls to the root where its weight is advantageous in applying more inertial force in this recessed location.


Large, bulky media affects the part surface more forcefully and does more work per unit run time. Smaller media affects the part surface less forcefully, but encapsulates the part uniformly, offering cushioning and a higher quality final finish.

MM Media

Inversely, a large, bulky, lightweight media of polyester plastic composition will bring to bear much less force to the location it con- tacts. With a density of just 65 lbs/ft3, coupled with a bulky-shape, this media only contacts the gear’s topland and addendum locations. Concomitantly, its light density applies a much lower inertial force in these easily contacted areas, thereby reducing the metal removal rate there and permitting it to match the high-density media metal removal rate in the dedendum and root.


Large, bulky media affects the part surface more forcefully and does more work per unit run time. A large, bulky media does not fill a volume efficiently, resulting in large interstitial void spaces that drain fluid efficiently during vibratory finishing.

Smaller media affects the part surface less forcefully, but encapsulates the part uniformly, offering cushioning and a higher quality final finish. Smaller media packs tighter to fill a void space efficiently. There are more void spaces, but they are very small in size and retain fluid in the bowl due to surface tension. This slows mass roll speed and increases the propensity to form fluid geysers. A fluid extraction pump is usually a necessity when small media is employed.


William (Bill) P. Nebiolo received a B.A. from The University of Connecticut and an M.S. in environmental sciences from Long Island University. He has been with REM Surface Engineering since 1989 and currently serves as a sales engineer and as REM’s product manager. Since 1978, Nebiolo has been an active member in the National Association for Surface Finishing (NASF) where he has represented the Connecticut chapter as an NASF national delegate and is the 2010,  2014,  and 2015  recipient of the NASF National Award of Merit. From 1996 to 2000, he served as one   of SME’s Mass Finishing technical training program instructors. He has published and presented dozens of technical papers and is the author of the SME Mass Finishing Training Book. Nebiolo can be reached at bnebiolo@remchem.com.
